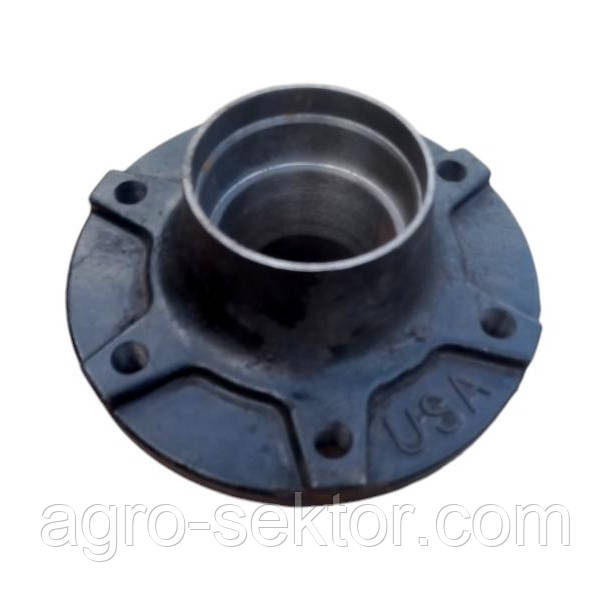

Маточина транспортного колеса без підшипників до сівалки Great Plains 815-082C 815-082 815082C 815082 815-082С

Маточина транспортного колеса на 6 болтів до сівалки Great Plains 815-082C 815-082 815082C 815082 815-082С 815-077C 815-077 815077C 815-077С 815077 200-037V 200-003D 200037V 200003D 200-037 200-003 200037 200003

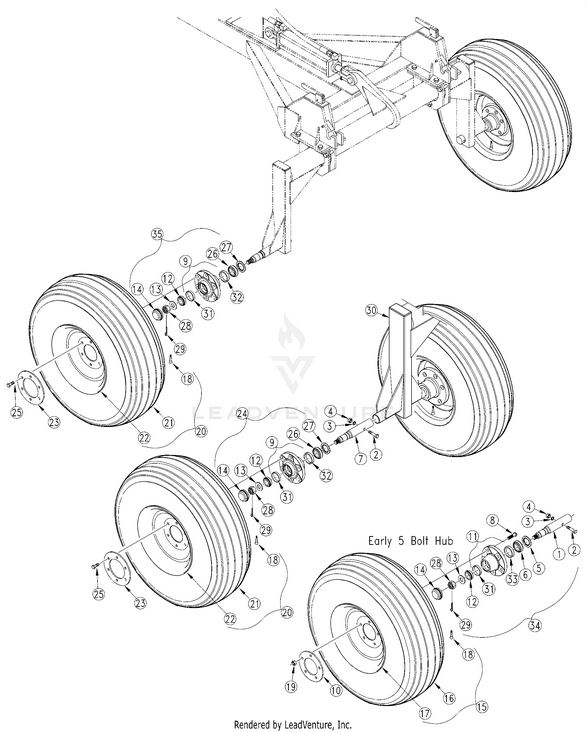

1 201-008D 5 BOLT HUB SPINDLE 1
2 802-099C HHCS 1/2-13X3 1/4 GR5 1
3 804-015C WASHER LOCK SPRING 1/2 PLT 1
4 803-020C NUT HEX 1/2-13 PLT 1
5 816-017C HUB SEAL 5 BOLT 1
6 822-034C BRG CONE LM-48548 1
7 201-009D 6 BOLT SINGLE ENDED SPINDLE 1
8 802-135C HUB STUD 1/2-20X1 5/8 GR5 1
9 815-082C HUB 6 BOLT 4 5/8  PILOT W/ CUPS 1 8/1/1996 <-> 12/31/1997. If replacing old hub order bolts P/N 802-399C item 25. Rev. 3 is not interchangeable w/rev. 2
9 200-037V RPBY 815-082C 1 1991 <-> 8/1/96. 2nd rev.
9 200-006S RPBY 200-037V 1 use existing stock; 1st rev.
10 124-118D 5 BOLT WHEEL REINFORCING RING 1
11 200-036V 5 BOLT WHEEL HUB & CUP ASSY 1 2nd rev.
11 200-005S RPBY 200-036V 1 use existing stock; 1st rev.
12 822-021C BEARING CONE LM67048 1
13 804-055C WASHER SPINDLE - 7/8 1
14 200-001D HUB GREASE CAP 1
15 109-058K TIRE 9.5LX15 ON 6IN 5BOLT RIM 1 Includes items 16, 17 and 18.
16 814-026C RPBY 814-011C 1
17 814-005C WHEEL 6 X 15 X 5 BOLT 1
18 816-035C VALVE STEM TR415X.625X1 1/4 LG 1
19 803-017C NUT LUG 1/2-20X90DEG PLT 13/16 1
20 102-006K TIRE/WHEEL ASSY 9.5LX15 12 PLY 1 Includes items 18, 21 and 22.
21 814-009C TIRE 9.5L X 15-12 PLYTUBELESS 1
22 814-008C WHEEL 8 X 15 X 6 BOLT 1
23 152-215D WHEEL REINFORCING RING 1
24 815-077C HUB 6 BOLT 4 5/8 PILOT 3600 LB 1 Includes items 9, 12, 14, 26, 27, 28 and 29. 2nd rev.
24 200-001S RPBY 815-077C & (6)802-104C 1 Includes items 9, 12, 14, 25, 26 and 27. 1st rev.
25 802-399C HFS 1/2-20X1 1/2 GR5 1 8/1/1996<->12/31/1997. Rev. 2 is not interchangeable w/rev. 1
25 802-104C BOLT WHEEL 1/2-20X1 90-DEG 1 1991<->8/1/96. 1st rev. Ref # Part # Description Qty Context N
26 822-018C BRG CONE 1.50ID LM29749 1
27 816-011C SEAL 2.56X1.625X.438 CR16289 1
28 803-029C NUT HEX SLOTTED 7/8-14 PLT 1
29 805-246C PIN COTTER 5/32 X 1 3/4 LG 1 2nd rev.
29 805-016C PIN COTTER 3/16 X 1 1/4 PLT 1 Replaced by 805-246C. 1st rev.
30 124-021H AXLE ASSEMBLY 1
31 822-020C BEARING CUP LM67010 1
32 822-019C BRG CUP LM-29710 1
33 822-033C BRG CUP LM-48510 1
34 200-004S 5 BOLT HUB & SPINDLE PACKAGE 1 Includes items 1, 5, 6, 8, 11, 12, 13, 14, 19, 28 and 29.
