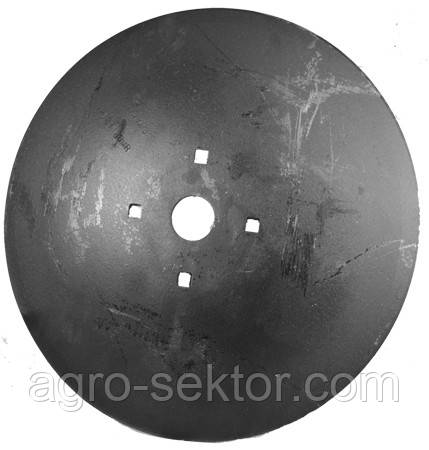

Диск бороні 18" гладкий 463*5 на 4 закоти Case Ecolo Tiger 84180366/443628A1

Диск бороні 18" гладкий 463*5 на 4 отвори Case Ecolo Tiger 84180366/443628A1

Лапи диски та Запчастини на землеоброблюванню техніку в Дніпропетруванні.

Диск бороні (гладкий) 463*5 на 4 відв. Case 84180366/443628A1

18" Rear covering disc. ― 4 bolt.

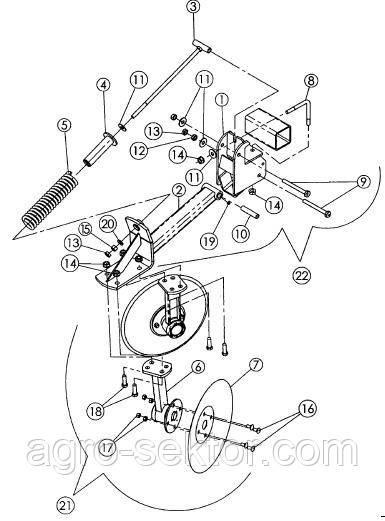

1 09103200 1 LEVELLING DEVICE, Mount
2 09103300 1 LEVELLING DEVICE, Pivot
3 09103250 1 LEVELLING DEVICE, T
4 09103020 1 RETAINER, Long Spring
5 24146820 1 SPRING, Compression
6 87328481 2 HUB, Disc Spindle
7 84180366 2 DISK HARROW, 18, Blade
8 87427190 1 BOLT, SPECIAL, 5-5/16, Square
9 16901022 2 SCREW, 5/8 x 6, NC, Hex, A325
10 09103030 1 PLUG, Heat Treated, Bushing
11 80299 4 WASHER, 5/8", Flat
12 86992216 2 NUT, LOCK, 5/8, NC, Hex
13 425-1410 2 NUT, Jam, 5/8"-11, G5,
14 231-53410 6 NUT, LOCK, Flg, 5/8"-11,
15 425-1010 1 NUT, 5/8"-11, G5,
16 433-816 8 BOLT, CARRIAGE, Short NK, 1/2"-13 x 1", G5,
17 425-108 8 NUT, 1/2"-13, G5,
18 413-1032 4 BOLT, Hex, 5/8"-11 x 2", G5,
19 219-86 1 NIPPLE, LUBE, 1/8" x .62" lg, Drive,
20 17411011 1 WASHER, 5/8, Flat
21 09102020 1 DISC, PLOW, Leveler, With 1 Blade, Inc. 6 - 7 And 22
21 09102099 1 DISC, PLOW, Leveler, With 2 Blades, Inc. 6 - 7 And 22
22 09103000 1 BRACKET, Leveler, Without Blades, Disc Spindle Assemblies, And Hardware

Fits DMI Turbo-Tiger, Tiger-Two, Turbo-TigerII, 527, 527B, 530, 530B, 530C, 730, 730B, 730C, 870, 875, 2500, 6700, 6750, 9300, ST650, ST720, ST770, ST775. Also Bermbuild'r on 2500 and ST650. Case-IH and DMI spring loaded NH3 disc sealers.
