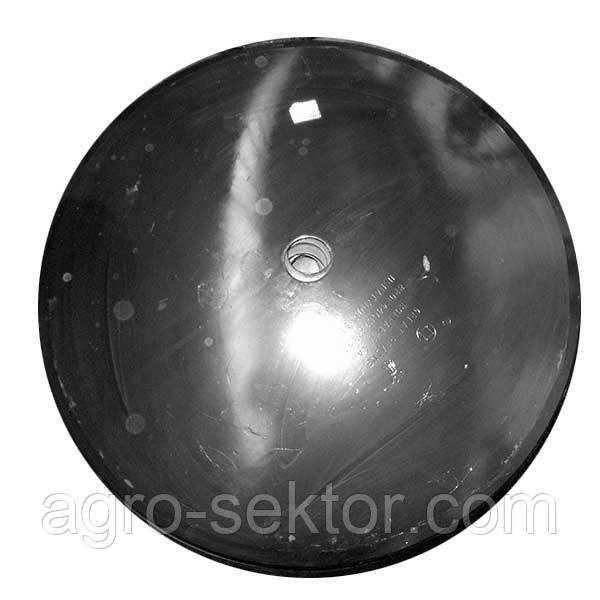

Диск бороні (гладкий) 610*6 мм D=51 Great Plains 820-356C
1 ₴
- В наявності
- Код: 820-356C
Диск бороні (гладкий) 610*6 мм D=51 Great Plains 820-356CВ наявності
1 ₴
+380 (66) 575-54-79
Іван
Майстер- +380 (96) 933-24-61Іван mik6881@gmail.com
- +380 (99) 246-12-25Иван
- +380 (67) 777-17-15Иван agrasektor@gmail.com
повернення товару протягом 14 днів за рахунок покупця
Диск бороні (гладкий) 610*6 мм D=51 Great Plains, Лапи диски та Запчастини на землеоброблювачу техніку в Дніпропетровську.
Диск борони, сфера 24RC X 0.256 X 1.78 (Днар = 610 мм, отвір 46 мм), GP, встановлюється на техніці Great Plains. Параметри: D=610 мм, отвір 46 мм
|
1
|
807-263C
|
C-SHANK HANGER 1.25X2.50 RH
|
Located on right front & left rear of disk.
|
|
|
     |
1
|
807-264C
|
C-SHANK HANGER 1.25X2.50 LH
|
(shown) Located on left front & right rear of disk.
|
|
     |
2
|
556-064H
|
C-SHANK PLATE, TOP
|
|
|
     |
3
|
556-233H
|
SCRAPER BRACKET, SPRING RH
|
Located on right front & left rear of disk.
|
Rev. 1
|
     |
3
|
556-346D
|
SCRAPER BRACKET, SPRING RH
|
Replaced by 566-233H.
|
|
     |
3
|
556-234H
|
SCRAPER BRACKET, SPRING LH
|
(shown) Located on left front & right rear of disk.
|
Rev. 1
|
     |
3
|
556-347D
|
SCRAPER BRACKET, SPRING LH
|
Replaced by 566-234H.
|
|
     |
4
|
800-130C
|
ZERK GREASE STRAIGHT 1/8-27MPT
|
|
|
     |
5
|
822-026C
|
BRG INS 1.78ID CDS211TTR23N
|
|
|
     |
6
|
812-006CP
|
CASTING TOP BEARING
|
|
|
     |
7
|
812-059C
|
CASTING CAP BOTTOM
|
(S/N A1323P+)
|
Rev. 2
|
     |
7
|
586-187D
|
CASTING BOTTOM BEARING FINISHD
|
Replaced by 812-059C (S/N A1322P-)
|
Rev. 1
|
     |
8
|
556-375D
|
BEARING SHIELD
|
|
Rev. 1
|
     |
9
|
556-124D
|
HALF SPOOL LONG, 9
|
9" disc spacing (shown)
|
|
     |
9
|
556-123D
|
HALF SPOOL LONG, 7 1/2
|
7 1/2" disc spacing
|
|
     |
10
|
556-122D
|
HALF SPOOL DISK, SHORT
|
|
|
     |
11
|
556-121D
|
FULL SPOOL DISK, 9
|
9" disc spacing
|
|
     |
11
|
556-120D
|
FULL SPOOL DISK, 7 1/2
|
7 1/2" disc spacing
|
|
     |
12
|
820-355C
|
BLADE DISC 24RC .197X1.78 HOLE
|
(shown)
|
|
     |
12
|
820-446C
|
BLADE DISC 24RC X.256 ROLLABLE
|
Replaced by 820-355C (S/N A1462P+)
|
Rev. 2
|
     |
12
|
820-356C
|
BLADE DISC 24RC .256X1.78 HOLE
|
Replaced by 820-446C (S/N A1461P-)
|
Rev. 1
|
     |
12
|
820-357C
|
BLADE DISC 22RC .197X1.78 HOLE
|
|
|
     |
12
|
820-445C
|
BLADE DISC 22RC X.256 ROLLABLE
|
Replaced by 820-357C (S/N A1462P+)
|
Rev. 2
|
     |
12
|
820-358C
|
BLADE DISC 22RC .256X1.78 HOLE
|
Replaced by 820-446C (S/N A1461P-)
|
Rev. 1
|
     |
12
|
820-359C
|
BLADE DISC 20RC .197X1.78 HOLE
|
|
|
     |
12
|
820-444C
|
BLADE DISC 20RC X.256 ROLLABLE
|
Replaced by 820-359C (S/N A1462P+)
|
Rev. 2
|
     |
12
|
820-360C
|
BLADE DISC 20RC .256X1.78 HOLE
|
Replaced by 820-446C (S/N A1461P-)
|
Rev. 1
|
     |
12
|
820-467C
|
BLADE DISC 26RC X.256 ROLLABLE
|
|
|
     |
13
|
556-125D
|
GANG BOLT 50 3/4"
|
7-Blade Gang 7 1/2", 6-Blade Gang 9"
|
|
     |
13
|
556-126D
|
GANG BOLT 59 3/4"
|
7-Blade Gang 9"
|
|
     |
13
|
556-127D
|
GANG BOLT 68 3/4"
|
8-Blade Gang 9"
|
|
     |
13
|
556-128D
|
GANG BOLT 77 3/4"
|
9-Blade Gang 9"
|
|
     |
13
|
556-129D
|
GANG BOLT 86 3/4"
|
10-Blade Gang 9"
|
|
     |
13
|
556-130D
|
GANG BOLT 95 3/4"
|
11-Blade Gang 9"
|
|
     |
13
|
556-131D
|
GANG BOLT 104 3/4"
|
12-Blade Gang 9"
|
|
     |
13
|
556-100D
|
GANG BOLT 58 1/4"
|
8-Blade Gang, 7 1/2"
|
|
     |
13
|
556-101D
|
GANG BOLT 65 3/4"
|
9-Blade Gang, 7 1/2"
|
|
     |
13
|
556-102D
|
GANG BOLT 73 1/4"
|
10-Blade Gang, 7 1/2"
|
|
     |
13
|
556-103D
|
GANG BOLT 80 3/4"
|
11-Blade Gang, 7 1/2"
|
|
     |
13
|
556-104D
|
GANG BOLT 88 1/4"
|
12-Blade Gang, 7 1/2"
|
|
     |
13
|
556-130D
|
GANG BOLT 95 3/4"
|
13-Blade Gang, 7 1/2"
|
|
     |
13
|
556-105D
|
GANG BOLT 103 1/4"
|
14-Blade Gang, 7 1/2"
|
|
     |
13
|
556-106D
|
GANG BOLT 110 3/4"
|
15-Blade Gang, 7 1/2"
|
|
     |
13
|
556-107D
|
GANG BOLT 118 1/4"
|
16-Blade Gang, 7 1/2"
|
|
     |
14
|
804-200C
|
WASHER DURA-TIGHT 1.81ID X 7.0
|
|
|
     |
15
|
804-229C
|
WASHER 2 3/4 X 1 3/4 X 1/4 PLT
|
|
Rev. 2
|
     |
15
|
804-205C
|
WASHER MACH 2 1/2X1 3/4X10GA
|
Changed to 804-229C
|
Rev. 1
|
     |
16
|
803-339C
|
NUT HEX SLOTTED 1 3/4-5 REGULR
|
|
|
     |
17
|
812-365C
|
CASTING THREAD PROTECTOR
|
|
Rev. 2
|
Характеристики
| Основні | |
|---|---|
| Виробник | Great Plains |
Інформація для замовлення
- Ціна: 1 ₴
